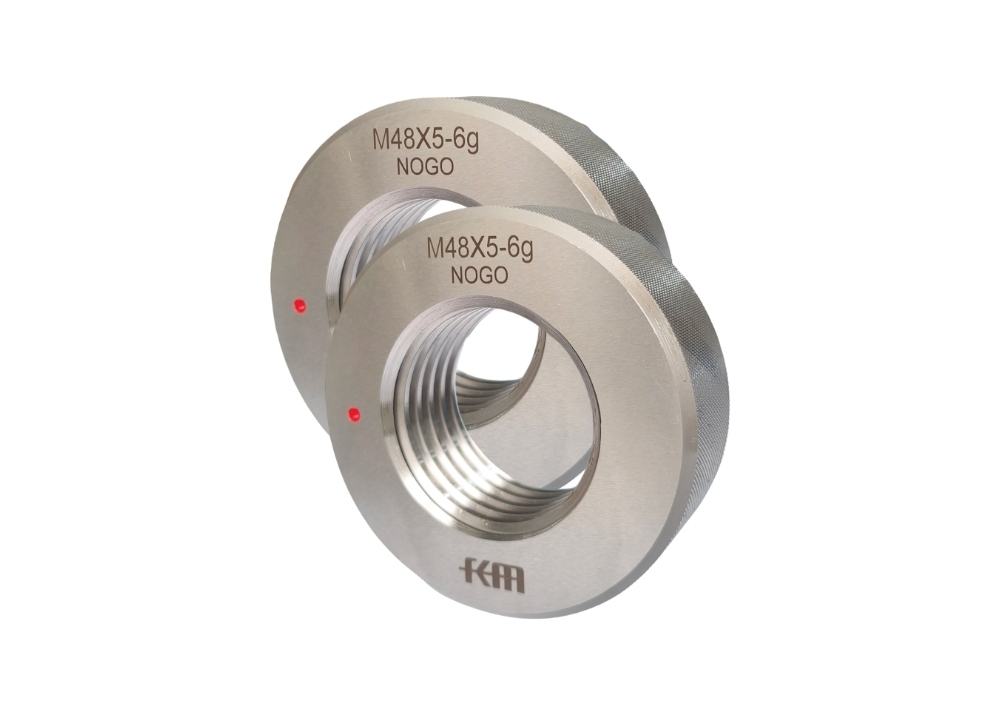

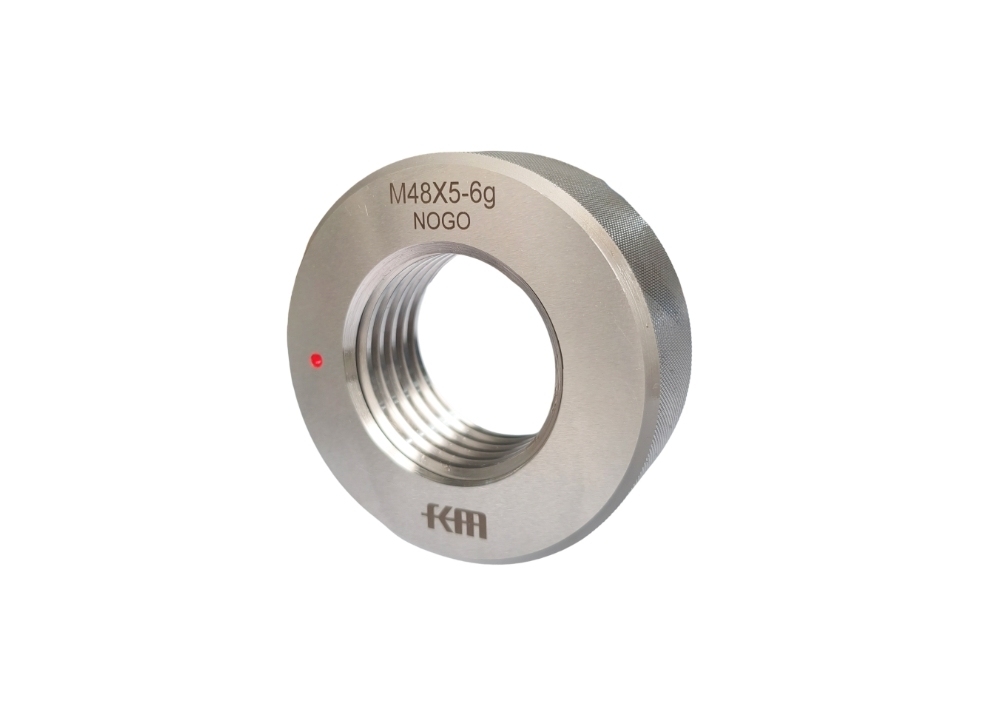

NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate

NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate

Produtos - Anel de medição e contato - Anel métrico e diâmetro do fio da tomada
  • Destacar

    Calibration Certificate Ring Gauge M48X5

    ,

    Metric Thread Ring Gauge M48X5

  • Garantia
    Um ano
  • Tipo
    Medidor de anel do fio
  • Padrão
    DIN13, DIN2280-89
  • Medição
    Métrica
  • Especificação de thread
    M48x5-6g NOGO
  • Forma
    Redondo
  • Objeto de medição
    Triplos de produtos externos em parafusos, parafusos
  • Uso
    para Trabalho e Inspeção
  • Precisão
    6g,6h,7g,7h,8g,8h, etc.
  • Pacote
    Caixa ABS
  • Lugar de origem
    Shanxi, China
  • Marca
    KM
  • Certificação
    ISO DIN GB RoHS
  • Número do modelo
    KM-R480-500-NG

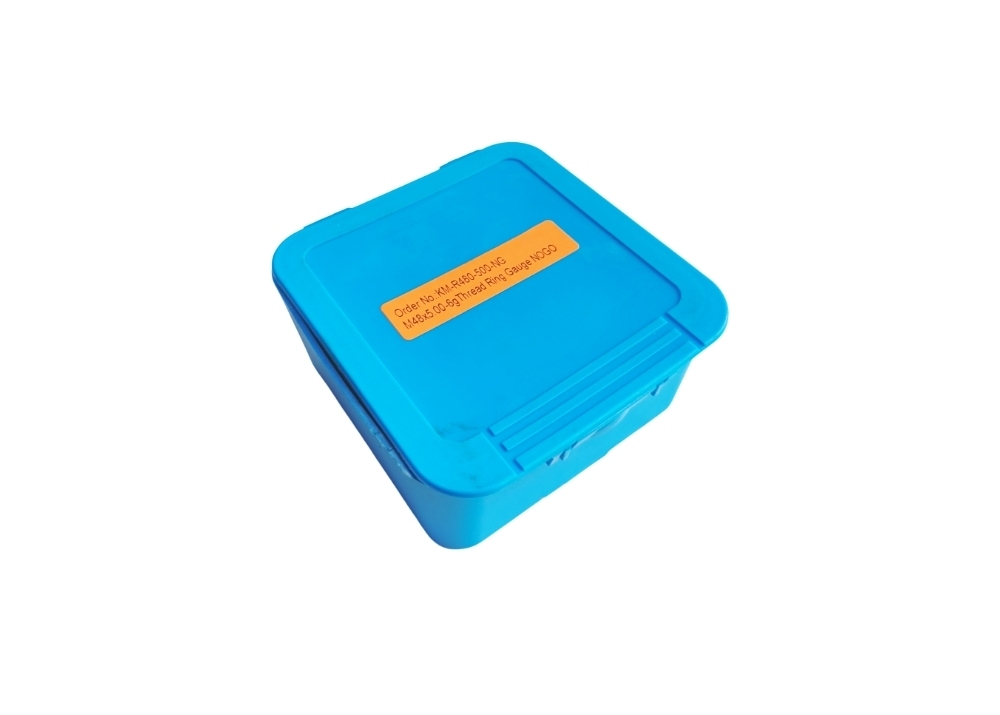

  • Detalhes da embalagem
    Caixa ABS 10*10*5cm/Peça 1,08kg/Peça
  • Tempo de entrega
    Dentro de 15 dias
  • Termos de pagamento
    L/C,D/A,D/P,T/T,Western Union,MoneyGram
  • Habilidade da fonte
    50.000 peças/mês

NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate

  • NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
  • NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
  • NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
  • NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
  • NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
Obtenha o preço contacto
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy classifications including 6g, 6h, 7g, 7h, 8g, and 8h.
We utilize first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
Gauge Types
Thread ring gauges come in GO and NOGO types. The GO ring gauge is machined to a minus tolerance for verification at maximum material limit, while the NOGO thread ring gauge is machined to a plus tolerance for verification at minimum material limit.
Key Features
  • Metric thread ring gauge system
  • Multiple accuracy options: 6g, 6h, 7g, 7h, 8g, 8h
  • Available in GO and NOGO types
  • Conforms to DIN13 and DIN2280-89 standards
  • Wear-resistant and corrosion-resistant construction
  • Stable structure for easy operation

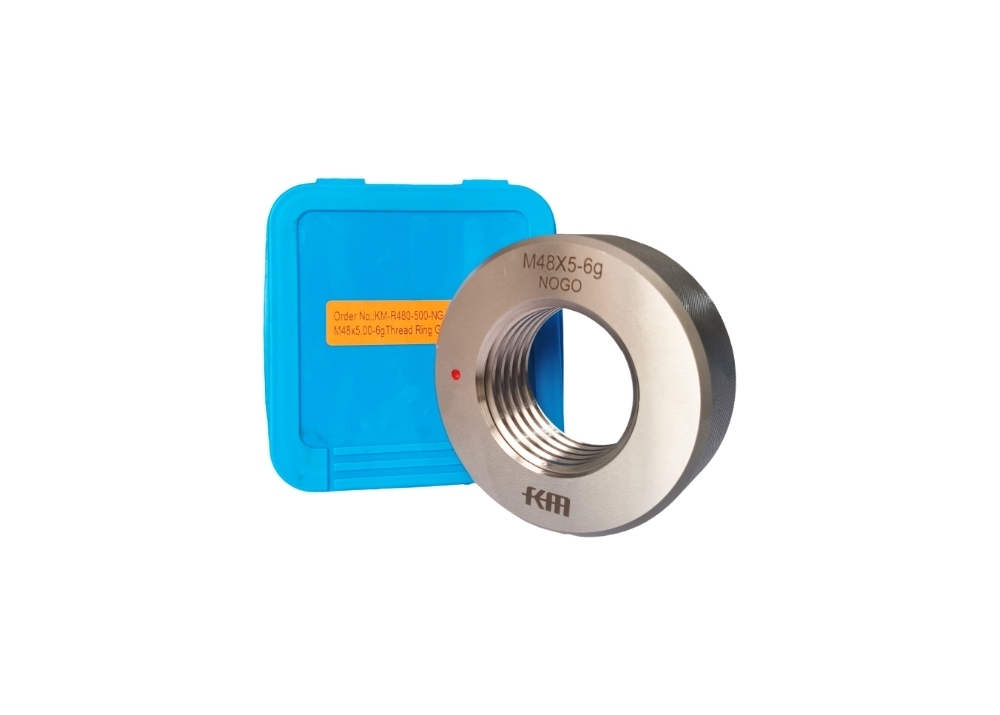

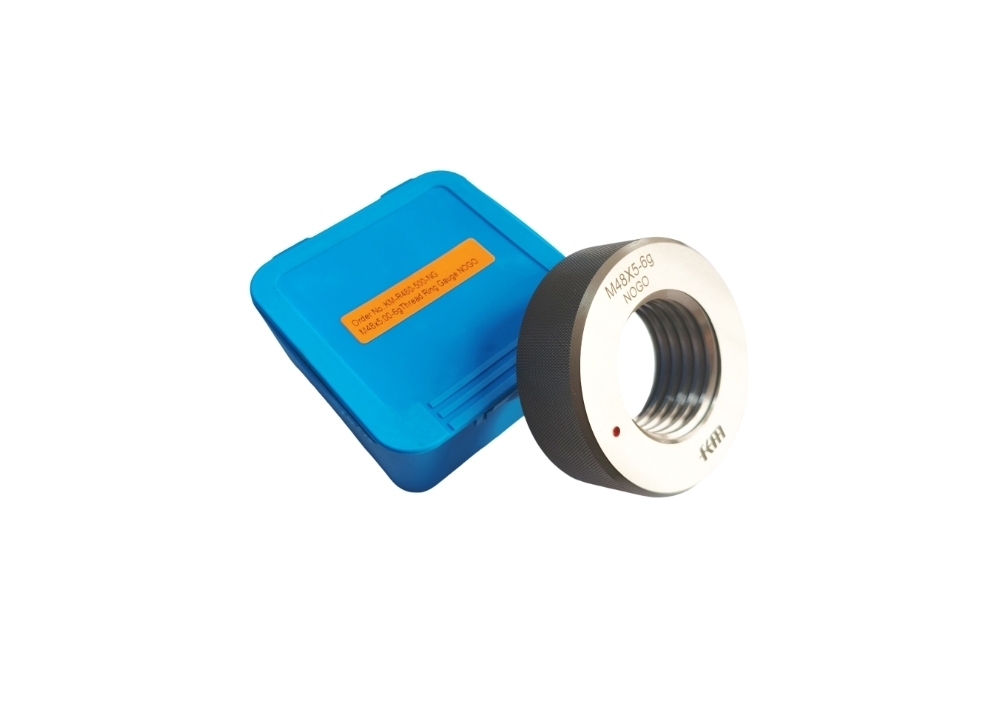

  • Includes protective fitted case
Product Specifications
Order No. Size Coarse Fine Accuracy
KM-R001 M1.0 0.25 0.20 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h
KM-R011 M1.1 0.25 0.20
KM-R012 M1.2 0.25 0.20
KM-R014 M1.4 0.30 0.20
KM-R016 M1.6 0.35 0.20
KM-R018 M1.8 0.35 0.20
KM-R020 M2.0 0.40 0.25
KM-R022 M2.2 0.45 0.25
KM-R025 M2.5 0.45 0.35
KM-R030 M3.0 0.50 0.35
KM-R035 M3.5 0.60 0.35
KM-R040 M4.0 0.70 0.50
KM-R050 M5.0 0.80 0.50
KM-R060 M6.0 1.00 0.75 0.50
KM-R080 M8.0 1.25 1.00 0.75
KM-R100 M10.0 1.50 1.25 1.00
KM-R120 M12.0 1.75 1.50 1.25
KM-R140 M14.0 2.00 1.50 1.25
KM-R160 M16.0 2.00 1.50 1.00
KM-R180 M18.0 2.50 2.00 1.50
KM-R320 M320


Applications
These threaded ring gauges are primarily used to measure thread diameter and pitch with high precision. Featuring wide measurement range and simple operation, they are widely used in machinery manufacturing, aerospace, automotive production, and other industrial fields.
Usage Precautions
  • Avoid touching the working surface with bare hands to prevent rust
  • Store properly on stable surfaces - not on machine tool holders or guide rails
  • Inspect regularly for damage, rust, or deformation
  • If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil
  • Never store working surfaces together to prevent adhesion damage
  • Clean thoroughly after use and store in dry conditions
Packing & Shipping
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate 0
Company Profile
NOGO Type M48X5 Metric Thread Ring Gauge Measuring Instruments with Calibration Certificate 1
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
2) What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
3) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
4) Do we accept customization?
Yes, OEM services are available.
