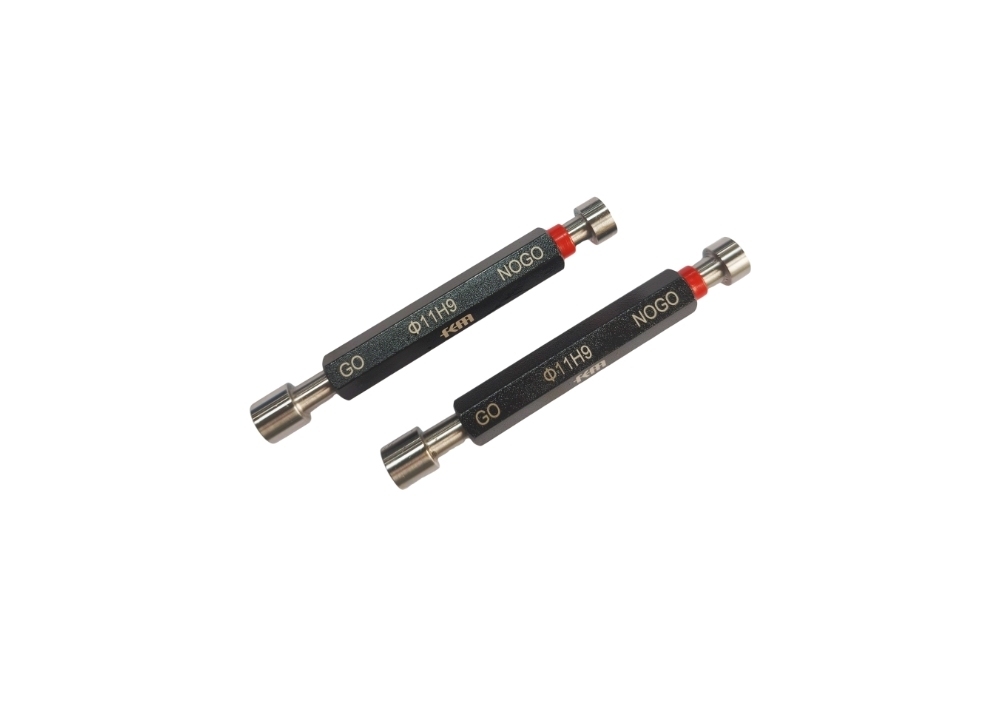

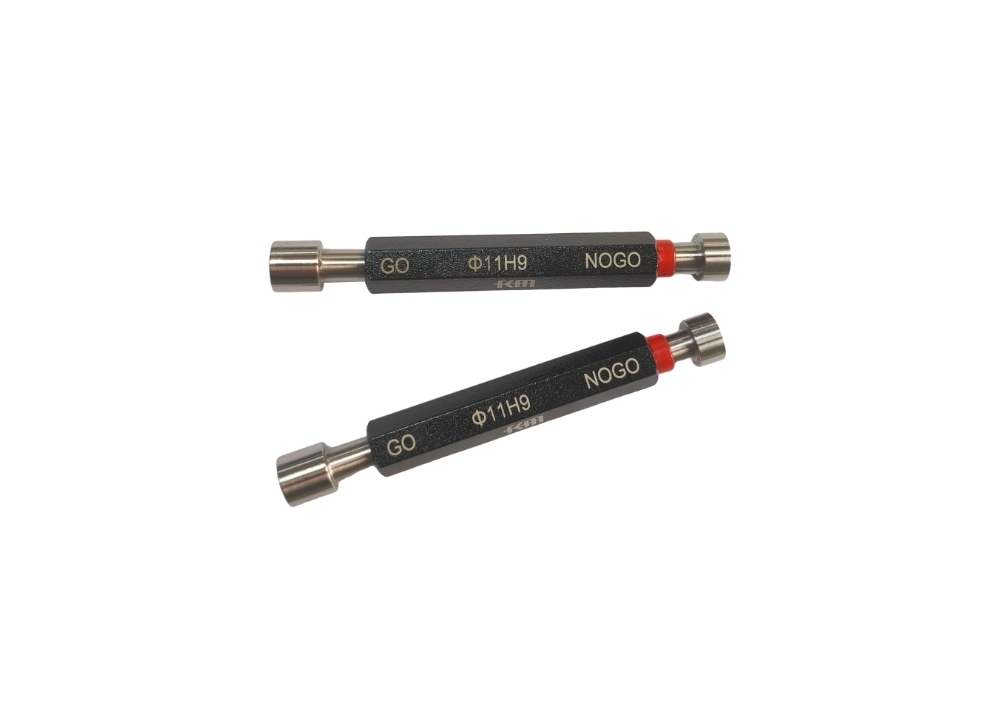

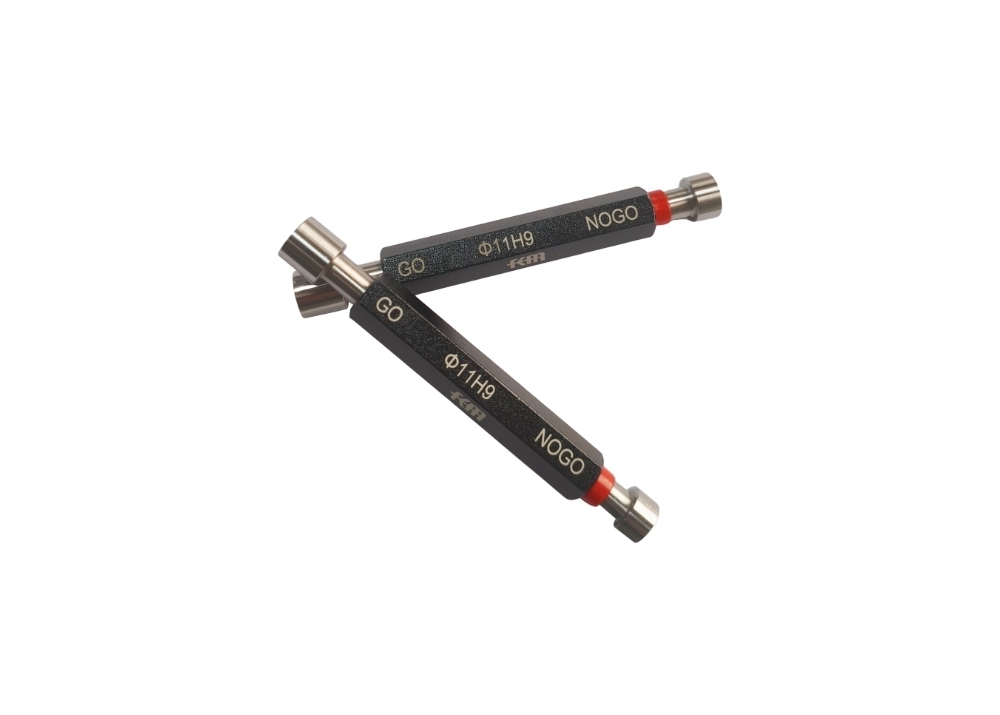

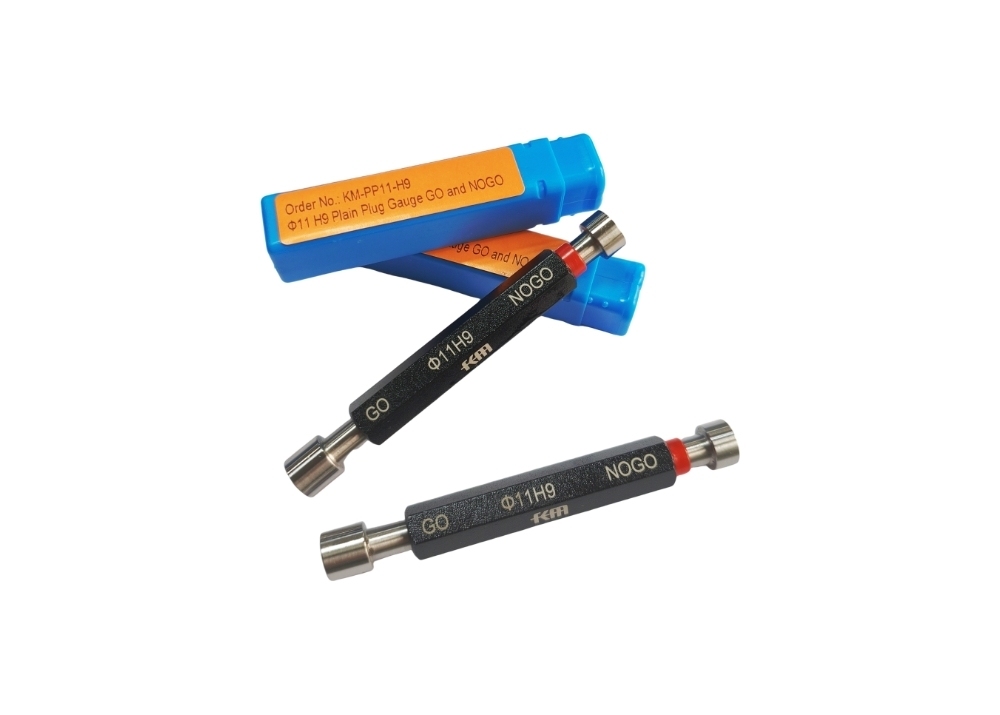

High Dimensional Accuracy ø11 H9 Smooth Plug Gauge for Thread Type Diameter and Pitch Verification
-
Destacar
High Dimensional Accuracy Plug Gauge
,Thread Type Smooth Plug Gauge
,ø11 H9 Smooth Plug Gauge
-
GarantiaUm ano
-
TipoMedidor de plugue suave
-
Objeto de mediçãoTamanho do buraco interno
-
Padrão de conformidadeDIN7162
-
Tamanhoø11 H9
-
MaterialAço Gcr15
-
Usopara Trabalho e Inspeção
-
PrecisãoH6 H7 H8
-
Método de testeAtravés do método de verificação
-
PacoteCaixa ABS
-
Lugar de origemShanxi, China
-
MarcaKM
-
CertificaçãoISO DIN GB RoHS
-
Número do modeloKM-PP11-H9
-
Detalhes da embalagemBox 10*2*1,5cm/peça 0,20kg/peça
-
Tempo de entregaDentro de 15 dias
-
Termos de pagamentoT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Habilidade da fonte50.000 peças/mês
High Dimensional Accuracy ø11 H9 Smooth Plug Gauge for Thread Type Diameter and Pitch Verification
High Dimensional Accuracy ø11 H9 Smooth Plug Gauge for Thread Type Diameter and Pitch Verification
Thread Type Diameter and Pitch Verification
Deko Corp provides a complete line of smooth plug gauges available in sizes from 1.8 to 300mm. These precision measuring tools are used to verify the inner hole dimensions of workpieces. Each gauge features both maximum and minimum limit sizes - the minimum limit end is called the GO end, while the maximum limit end is called the NOGO end.
Product Features
- Smooth plug gauge for precise dimensional verification
- Available in various accuracy grades: H6, H7, H8
- GO, NO GO, and combination GO/NOGO types available
- Manufactured to DIN7162 standard
- Wear-resistant and corrosion-resistant construction
- Stable structure for reliable measurements

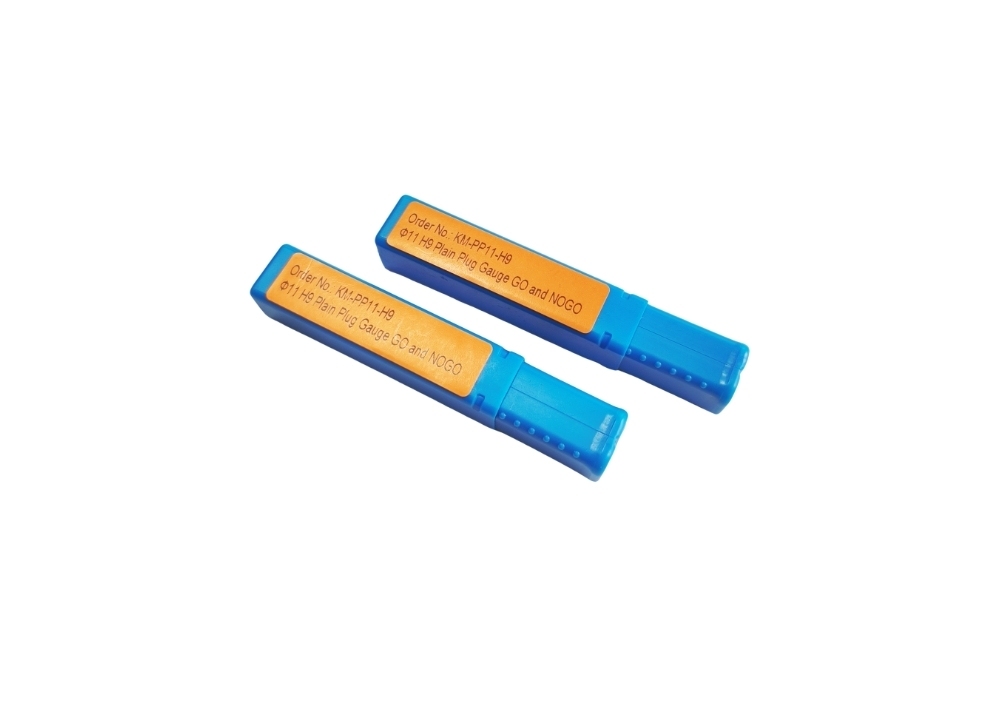

- Supplied in protective fitted case
Specifications
| Size (mm) | Accuracy |
|---|---|
| 58 | H6 H7 H8 |
| ….. | |
| 300 |
Note: Complete size range available from 1.8mm to 300mm
Applications
- Hole inspection: Verifies workpiece hole dimensions meet design specifications
- Quality control: Ensures production parts maintain dimensional standards
- Standardized production: Maintains consistency across production batches
Usage Precautions
- Inspect gauge surfaces for cleanliness and defects before use
- Use only during valid calibration period with proper documentation
- Maintain measurement temperature near 20°C with minimal insertion force
- Insert gauge along hole axis without tilting or rotation
- Clean thoroughly after each use to maintain accuracy
Packing & Shipping
About Deko Corporation
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China.
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China.
What products do we carry?
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
How about after-sales service?
All products come with a one-year warranty. Defective items will be replaced promptly. Our strict calibration and inspection processes ensure consistent product quality.
All products come with a one-year warranty. Defective items will be replaced promptly. Our strict calibration and inspection processes ensure consistent product quality.
